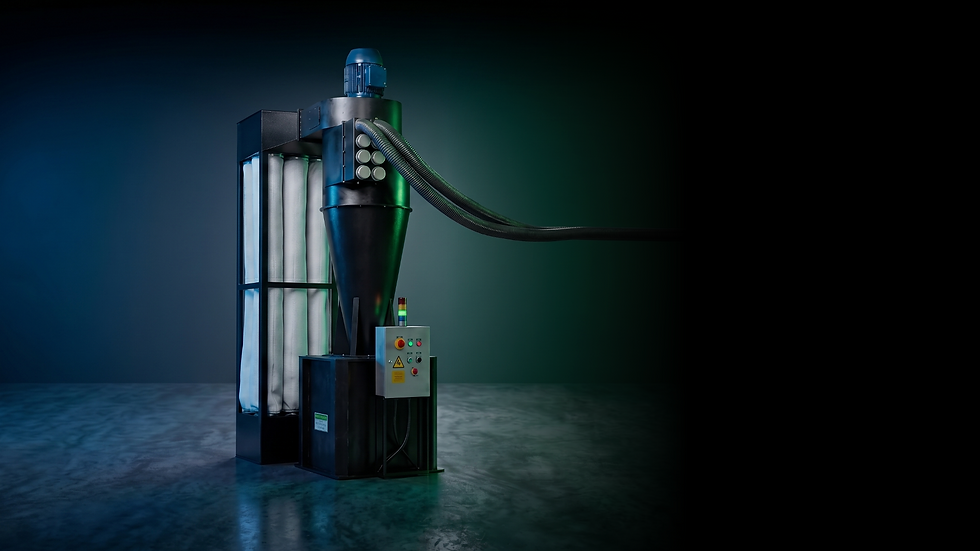

EXHAUST

SYSTEM

DUST COLLECTOR DURING

THE GRINDING PROCESS

Operating with a sleeve filter system, the exhaust model turbociclon (tc), is perfect for Dust suction produced during the grinding process.



Its high efficiency allows the separation of waste between light and heavy, facilitating material reuse or disposal.



Depending on distance and footprint of your grinder machines, a single exhaust system can be use up to 09 machines.

efficiency

the Rebel exhaust system can vacuum to 90% of the dust produced during grinding.

In the United States, OSHA (Occupational Safety and Health Administration) follows a similar standard, allowing 90 dB(A) for 8 hours

​

If noise levels exceed the permissible limits, it is essential to implement control measures such as acoustic insulation, efficient industrial exhaust systems, and mandatory use of Personal Protective Equipment (PPE), such as hearing protection devices.



Rebel designs its industrial machines in compliance with these regulations to ensure greater safety and operational comfort.

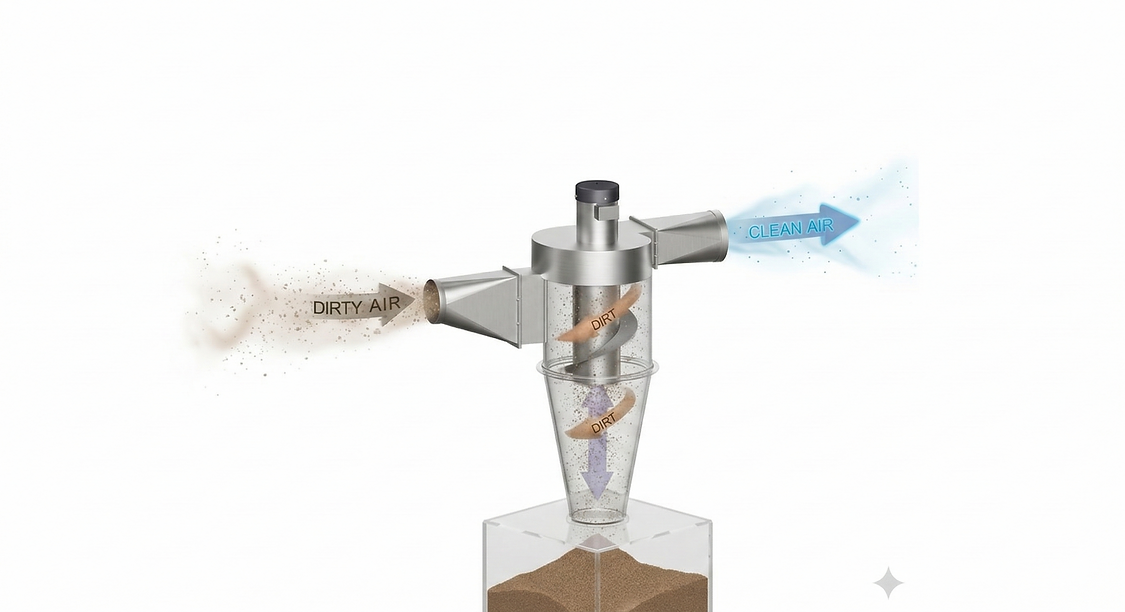

Dust Colector Rebel

Dirty air enters the Rebel exhaust system, where the heavier particles are separated and directed downward.


The system then sends cleaner air to the bag filter, further reducing impurities and helping protect the operator’s respiratory health, ensuring a cleaner and healthier working environment.

DIRTY AIR IN.
CLEAN AIR OUT.

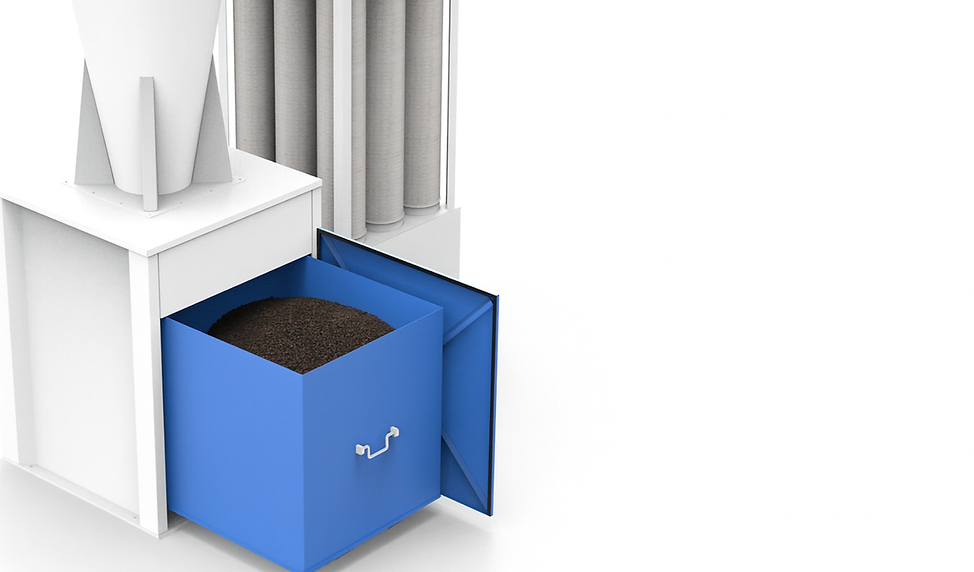

DUST

WASTE

BOX

TECHNICAL
INFORMATION

Dust Collector 2.png

DUST

WASTE

BOX

Dust Collector3.png

Model:

Turbo Ciclon | TC75

​

Power:

20HP

​

Size:

Height: 3.936mm (154.96063 inch)

Width:  2.433mm (95.78740157 inch)

Depth: 1.131mm (44.48819 inch)

​

Flexible hose/ tube:

4" diameter

​

Sleeve filter bags:

09 sleeves

​

Flow rate:

8.900m³/h

​

Static pressure:

120mm co

​

Filtering area:

17.0 m²

​

​

​

White Felt Rolls on Seamless Background.png

flexible hose and tube not included

​

OPTIMIZE YOUR GRINDING PROCESS TODAY.
