HEAVY-DUTY
WHEEL GRINDER
MACHINE

Rebel 400 and 500RB60 Heavy-Duty Wheel Grinders for grinding and deburring small and medium-sized cast and forged parts.
Rebel 400 and 500RB60 Heavy-Duty Wheel Grinders for grinding and deburring small and medium-sized cast and forged parts.

The Rebel 400 or 500RB60 is a compact heavy-duty wheel grinder designed for efficient deburring of cast iron and steel components. Stable, safe and ideal for medium to large foundries. Fully compliant with OSHA, CE and NR12

HEAVY-DUTY

Built with a heavy-duty steel plate structure, the Rebel Wheel Grinder delivers exceptional rigidity, durability, and low-vibration operation.

White Grinding Wheel Ring Icon.png

GRINDING WHEEL

Available for 16" (406.4 mm) or 20" (508 mm) grinding wheels, providing the right configuration for different grinding applications.

POWER

7,5 or 10HP


White Speedometer Gauge Icon.png

Peripheral Speed

High peripheral speed up to 63 m/s delivers powerful material removal and high grinding performance.

SAFETY

Safety is a priority. Rebel equipment meets CE, NR12, and applicable OSHA safety requirements.

Âncora 1

MOTOR

7,5 or 10HP

Industrial wheel grinder 400RB60 for foundry deburring

SAFETY

Manufactured with various safety items and required standards.

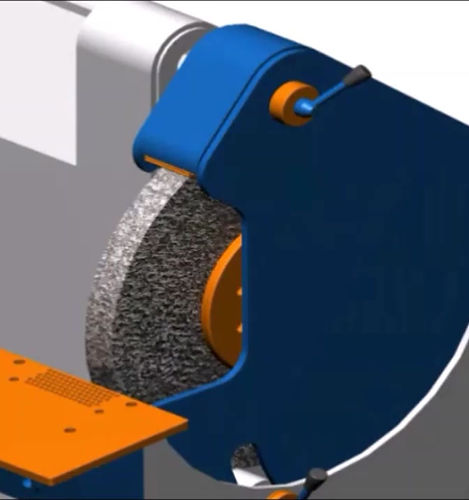

The Wheel Grinder Machine has a safety device that automatically closes the wheel in case of breakage.


This device acts as an airbag minimizing the accident.

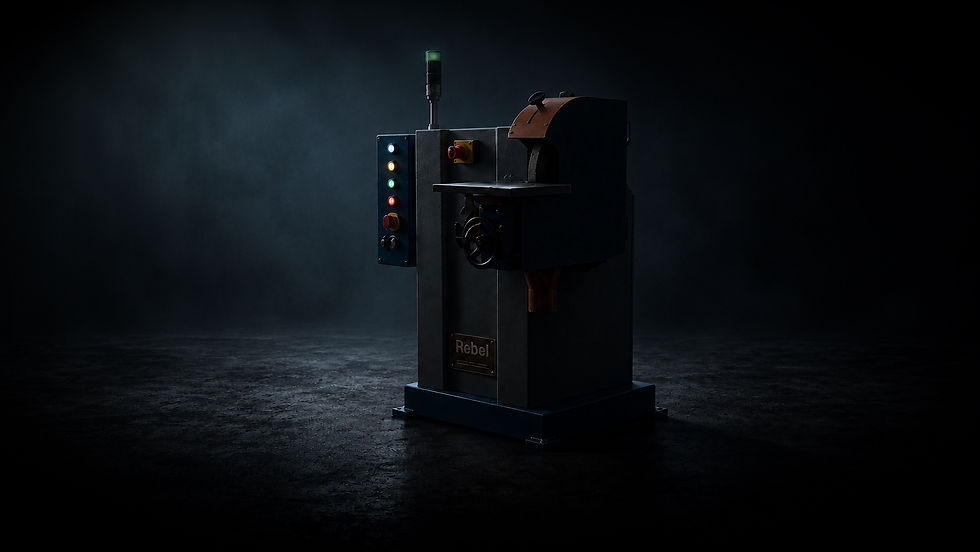

Heavy Duty Wheel Grinder machine for foundry - Rebel.jpg

HEAVY-DUTY

The Rebel 400 or 500RB60 delivers excellent performance for medium-duty and heavy-duty grinding operations in foundries and metalworking plants. Its rigid structure, balanced wheel assembly and optimized motor configuration ensure smooth grinding with reduced operator fatigue. Suitable for cast iron, steel and ductile iron parts, the 400RB60 and 500RB60 support snag grinding as well as fine deburring. The machine is engineered for continuous operation and complies with OSHA, CE and NR12 safety standards. Typical applications include automotive castings, agricultural machinery components, hydraulic parts, and general industrial fabrication.

SUPERABRASIVE
GRINDING WHEEL

The Rebel Grinder was designed to operate with either organic or diamond grinding wheels, depending on its *configuration. With a quick setup process, the machine swiftly adapts to the required technical specifications, ensuring high performance and maximum safety.

​

*mechanical / electrical

TECHNICAL INFORMATION

400RB60

Model:

400RB60

​

Power:

7,5HP

​

Wheel size:

Diameter: Ø16" (406,4 mm)

Width: 2" or 2.5" (50.8 or 63.5 mm)

Internal diameter: 5" (127 mm)

​

Wheel speed:

63m/ sec.

​

SuperAbrasive:

Wheel Speed 80m/ sec.

​

Equipment weight:

450 kg.

​

​

​

AUTOMATIC BODYGARD SYSTEM

TO PROTECT THE OPERATOR IN CASE

OF WHEEL BREAKAGE.

400RB60

Model:

500RB60

​

Power:

10HP

​

Wheel size:

Diameter: Ø20" (508 mm)

Width: 2" or 2.5" (50.8 or 63.5 mm)

Internal diameter: 8" (203,2 mm)

​

Wheel speed:

63m/ sec.

​

SuperAbrasive:

Wheel Speed 80m/ sec.

​

Equipment weight:

500 kg.

​

​

​

AUTOMATIC BODYGARD SYSTEM

TO PROTECT THE OPERATOR IN CASE

OF WHEEL BREAKAGE.

OPTIMIZE YOUR GRINDING PROCESS TODAY.

Âncora 2
Heavy-duty Wheel Grinder machine Rebel for foundry_edited.jpg

HEAVY-DUTY
WHEEL GRINDER
MACHINE

Industrial Rebel Grinder Cutout.png

DOUBLE
WHEEL GRINDER
MACHINE

Maual Cut-Off machine with disc for foundry parts.png

CUT-OFF
MACHINE

SUPER ABRASIVES
DIAMOND WHEEL

Diamond Wheel for grinding
